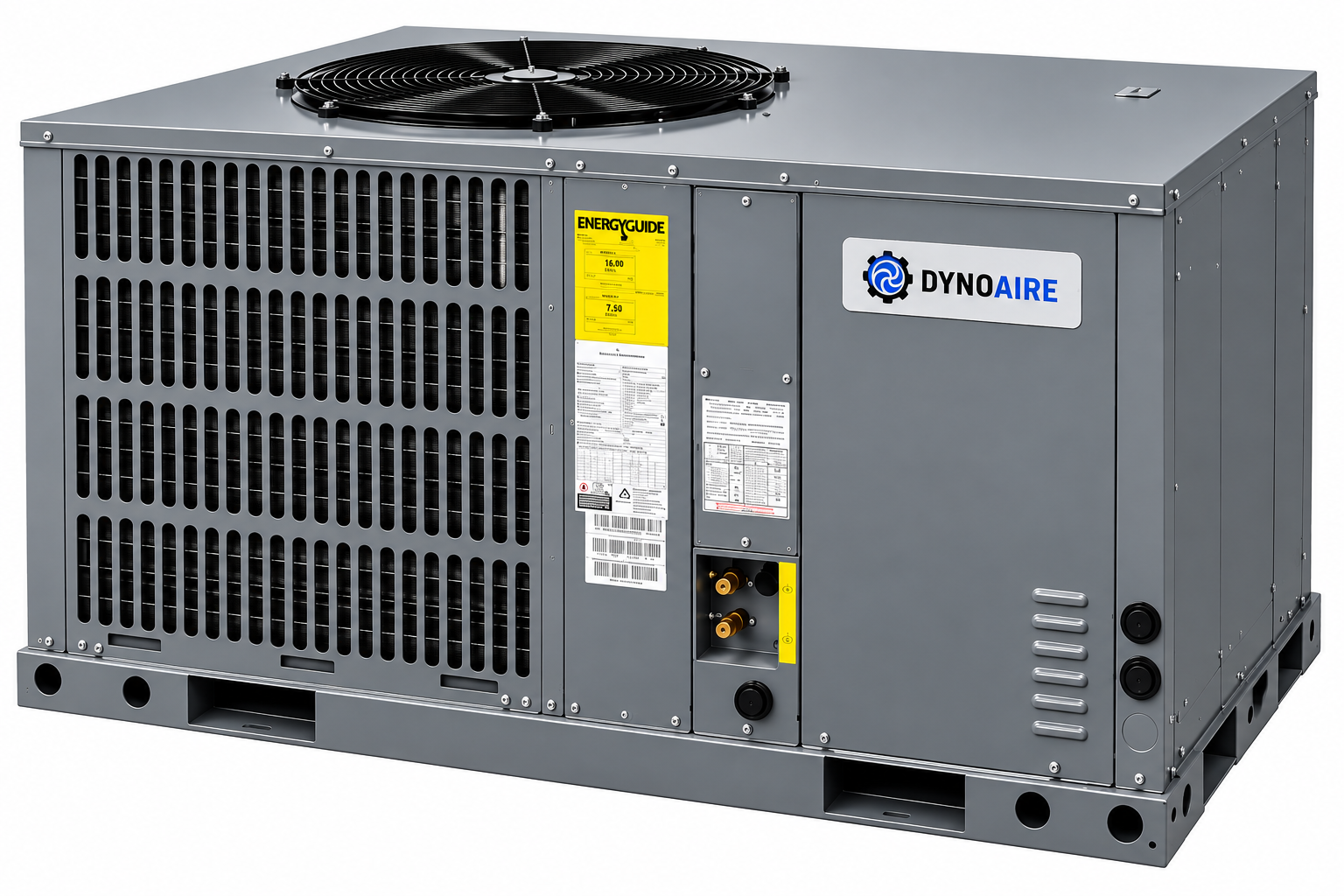

4 Ton Package Unit Heat Pump Dynoaire 16 Seer Inverter R32 All In One Unit

Express delivery and free returns within 30 days

~~$4,495.00~~ $4,095.00

Key features shown in the Dynoaire submittal are:

Plus Series packaged rooftop heat pump, available in 4–5 ton capacity, using R32 refrigerant and rated 16.0 SEER2.
Heating and cooling operation, with cooling operating range of 40°F–120°F and heating range of -4°F–86°F.
Rotary compressor with electronic expansion valve (EEV) refrigerant control.
ECM constant-torque indoor blower motor with 5 selectable speed taps and configurable 4-stage or 2-stage fan control. …
Anti-Cold Air Fan Delay, using the indoor-coil temperature sensor to reduce cold-air discharge during heating startup.
Optional active dehumidification, which lowers evaporator temperature and reduces fan speed when a DH call is received from a compatible thermostat/humidistat.
Multiple system sensors and protections, including low-pressure transducer, high-pressure switch/transducer, return-air, indoor-coil, condenser, ambient, compressor-discharge, and liquid-pipe temperature sensing.
Side supply/return and bottom configuration provisions

Category PACKAGE UNITS Brand: Dynoaire

Share it :

Description

Specification	DPHP6048A1IH000A	DPHP6060A1IH000A
Nominal size	48K / 4 Ton	60K / 5 Ton
Rated voltage / phase / Hz	208–230 / 1 / 60	208–230 / 1 / 60
Min. / Max. voltage	176 / 265 V	176 / 265 V
Cooling
Operating range	40°F–120°F	40°F–120°F
Cooling capacity, high	44,000 BTUH	54,000 BTUH
Indoor airflow	1,360 CFM	1,360 CFM
SEER2 / EER2-HI	16 / 10.5	16 / 10.5
Heating
Operating range	-4°F–86°F	-4°F–86°F
Heating capacity / COP, high	44,500 BTUH / 3.5	54,000 BTUH / 3.5
Power input	12.71 kW	15.43 kW
HSPF2	7.5	7.5
Electrical
Power connection	208–230V / 1Ø / 60Hz	Same
Minimum circuit ampacity (MCA)	42.4 A	42.4 A
Maximum overcurrent protection	60 A	60 A
Max./recommended fuse	60 A	60 A
