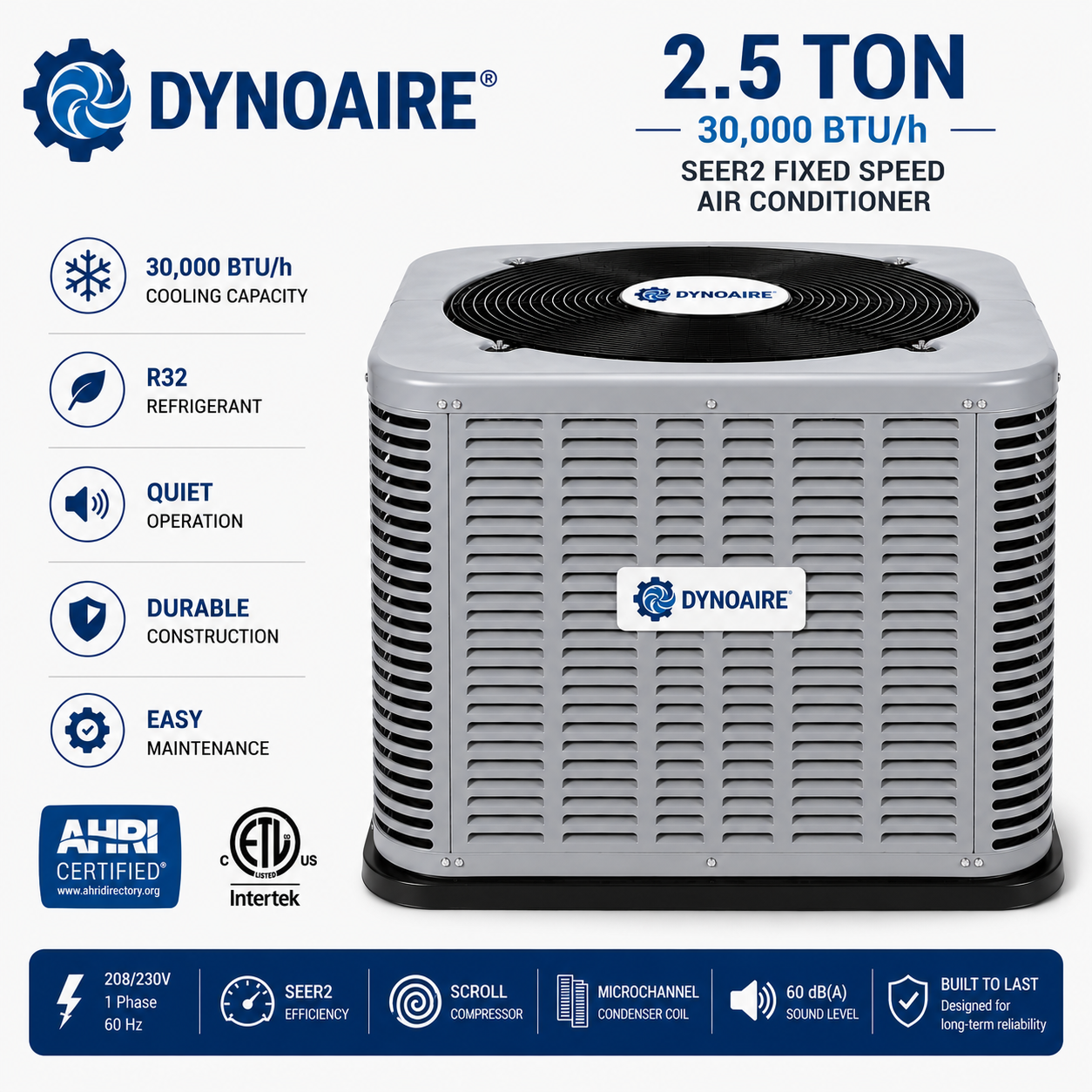

2.5 Ton Straight Cool Condenser 14.3 Seer2 DYNOAIRE R-32

~~$1,800.00~~ $1,695.00

Standard Features

Eco-friendly R32 refrigerant with low GWP
Energy-efficient scroll compressor
Equipped with dual overload protection
High-quality condenser with inner-groove copper tube and aluminum fin
Service valves with gauge connections and easy-access gauge ports
Factory-installed high-pressure switch
Microchannel control with no PCB, making maintenance easier
AHRI certified and ETL listed

Compact design for easy installation and maintenance
Powder-painted galvanized steel cabinet chassis
Protective steel louvered coil guard
Easy-access panels for servicing
Unique fan blade for quieter operation
5-Year Parts Warranty 7 year Compresser
10-Year Parts Warranty with Registration

Category Air Conditioner Condenser Brand: Dynoaire

Share it :

Description

Dynoaire 2.5 Ton — Updated Specifications

Specification	Details
Model	DAC5030E1000A
Nominal Capacity	2.5 Ton
Rated Cooling Capacity	29,000 BTU/h
Power Supply	208/230V, 1 Phase, 60 Hz
MCA	16.7 A
Max. Overcurrent Protection	25 A
Compressor Type	Scroll
Compressor RLA	11 A
Compressor LRA	60 A
Crankcase Heater	No
Fan Motor Type	PSC
Fan Motor HP	1/5 HP
Fan Motor RPM	1,075 RPM
Refrigerant	R32
Operating Range – Cooling	55–120°F
Sound Level	65 dB(A)
Height	26 in
Width	24-7/16 in
Depth / Length	30-1/16 in
Shipping Weight	165 lb

Additional information

Weight	130 lbs
Dimensions	24 × 22 × 26 in
