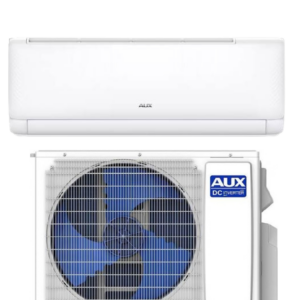

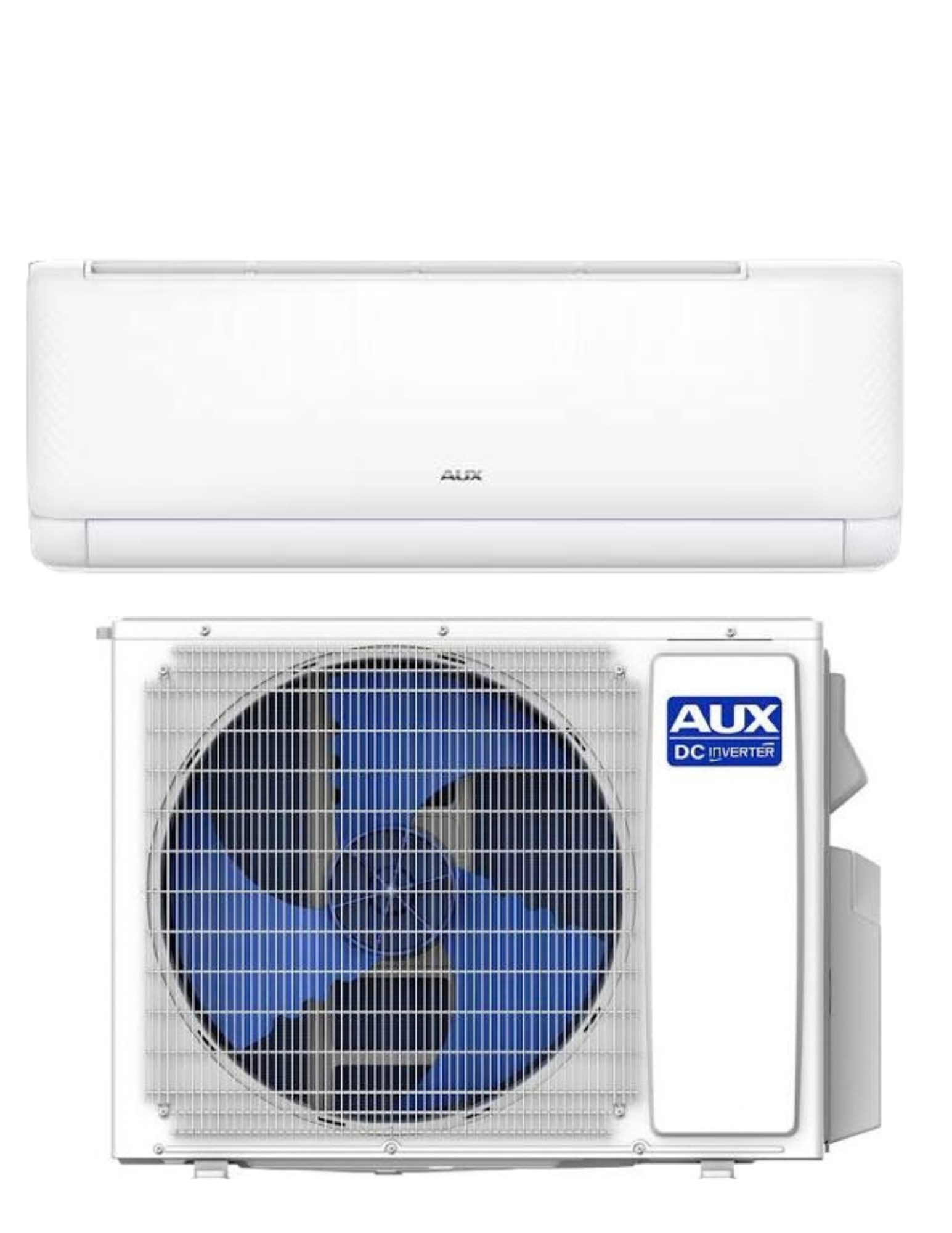

AUX R32 C-SERIES – 12K MINI-SPLIT

Manufacturer: AUX
Series: C-Series
Model: AMAR12HP115V1C

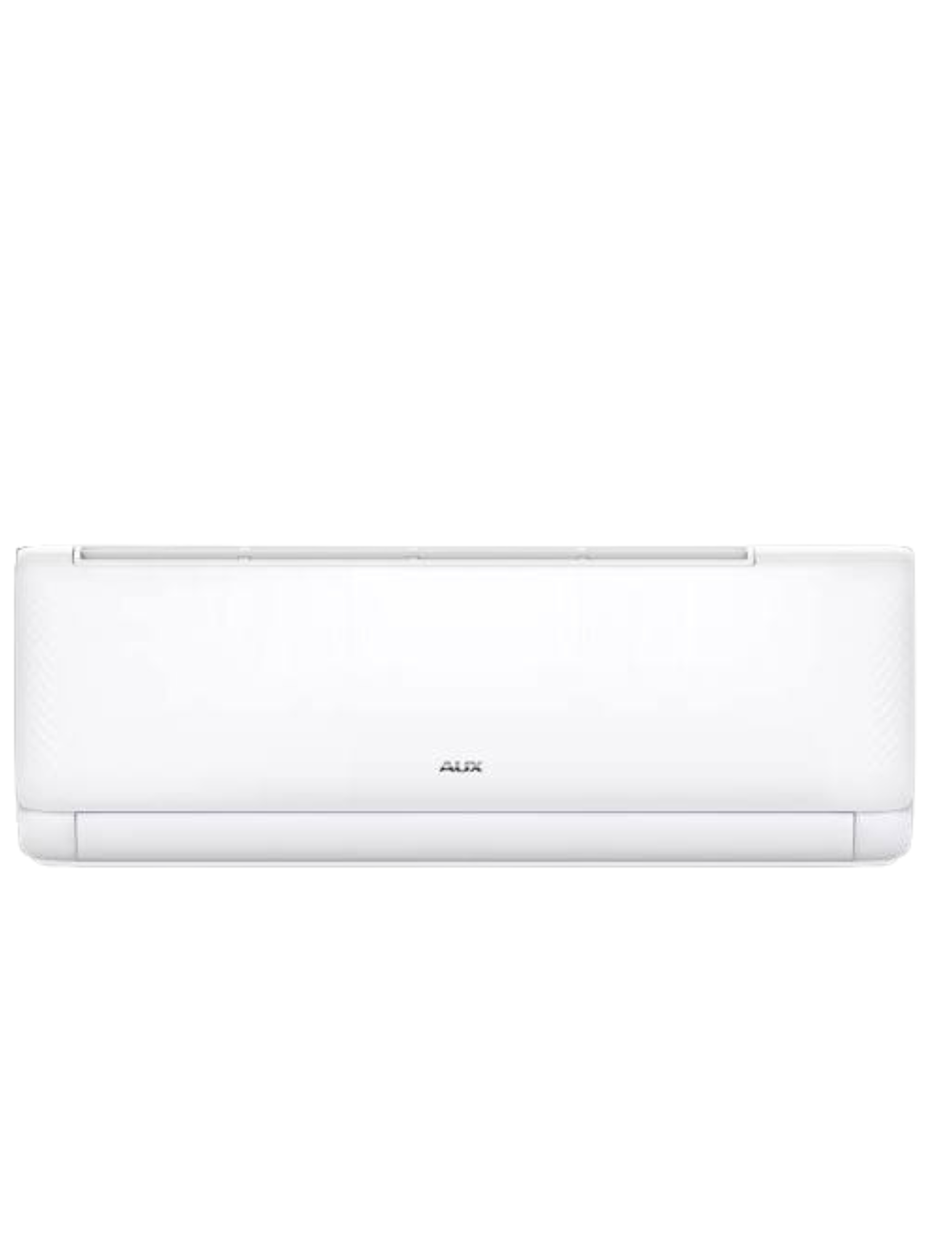

Indoor Unit: AMAR12HP115V1CH

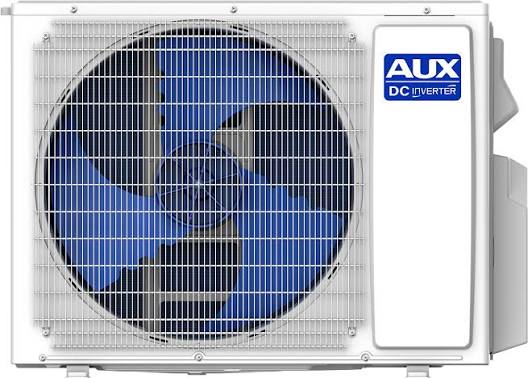

Outdoor Unit: AMAR12HP115V1CO
System Type: Single-Zone Ductless Heat Pump
Refrigerant: R32
AHRI Reference No.: 214290018

PERFORMANCE

Cooling

• Rated Capacity: 12,000 Btu/h
• Capacity Range: 1,700–13,400 Btu/h
• Rated Power Input: 1,000 W
• Cooling Operating Range: 5°F to 125°F

Heating

• Rated Capacity @ 47°F: 12,300 Btu/h
• Rated Capacity @ 17°F: 8,600 Btu/h
• Maximum Capacity @ 5°F: 9,600 Btu/h
• Low-Ambient Heat Pump Operation

Efficiency

• SEER2: 25.0
• HSPF2: 10.5
• EER2: 12.0

ELECTRICAL

• Power Supply: 115 V / 1 Phase / 60 Hz
• Inverter-driven compressor
• Provide dedicated branch circuit and overcurrent protection in accordance with unit nameplate and manufacturer requirements.

REFRIGERANT / PIPING

• Refrigerant Type: R32
• Liquid Line: 1/4 in. OD
• Gas/Suction Line: 3/8 in. OD
• Refrigerant piping shall be insulated, supported, evacuated, leak-tested, and charged in accordance with AUX installation requirements.

FEATURES

• Variable-speed inverter heat pump
• Single-zone heating and cooling
• High-efficiency 25 SEER2
• R32 refrigerant
• Low-ambient operation
• AUX app / remote-control capability
• Voice-control capability
• Automatic restart after power interruption
• Automatic self-cleaning
• Base-pan heater
• Golden Fin anti-corrosion coil coating
• Wide operating range
• Installation plate with built-in level
• Wall-mounted indoor air handler

WARRANTY

Provide manufacturer’s limited warranty in accordance with current AUX warranty terms and product-registration requirements.

INSTALLATION

Install complete system in accordance with manufacturer’s written installation instructions, approved refrigerant piping practices, equipment nameplate requirements, and applicable mechanical and electrical codes.

Provide all required mounting hardware, refrigerant piping, insulation, condensate drain, electrical connections, controls, disconnects, and accessories required for a complete and operational system.

BASIS OF DESIGN

AUX R32 C-Series AMAR12HP115V1C, consisting of AMAR12HP115V1CH indoor unit and AMAR12HP115V1CO outdoor unit.
