$1,295.00

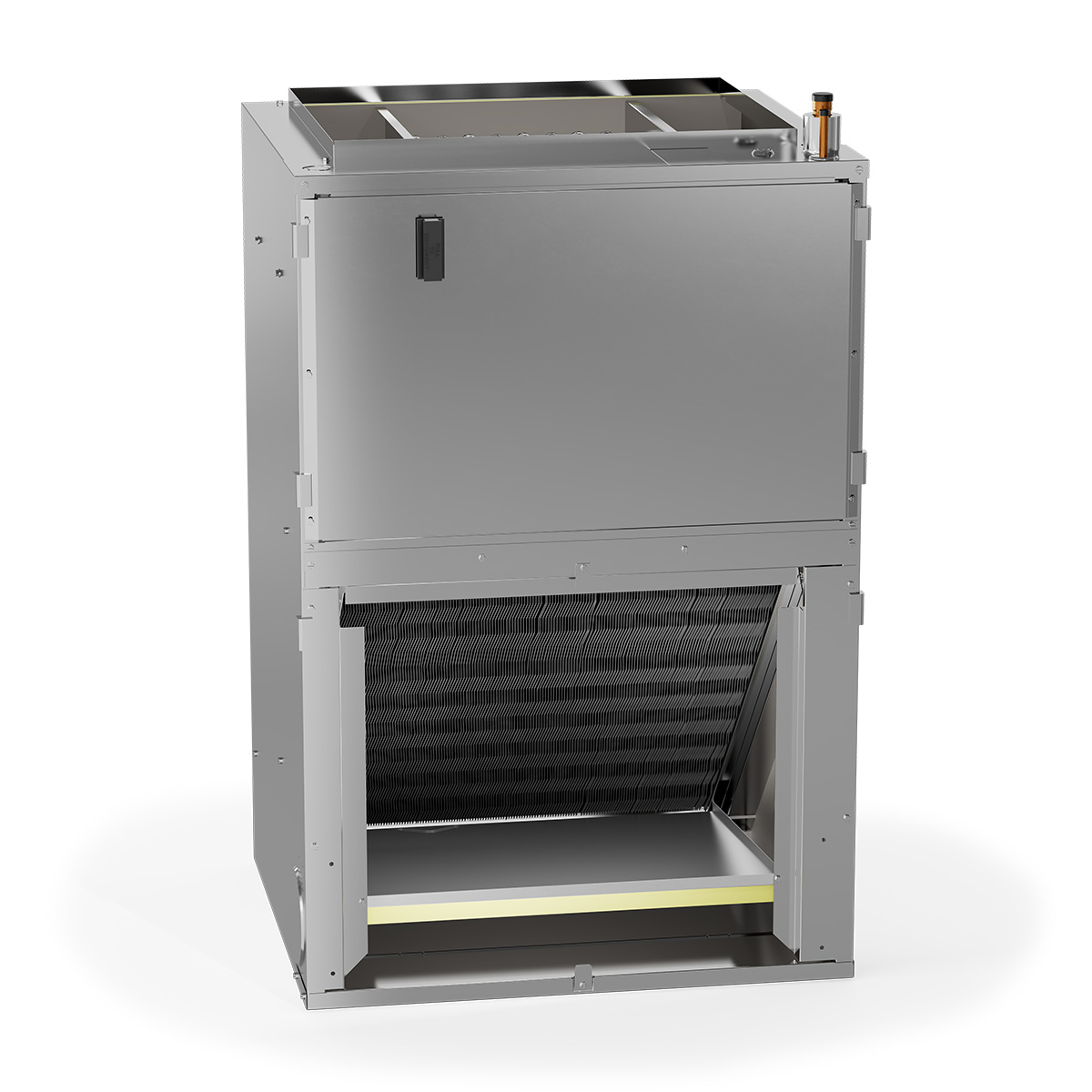

AWST Models: Equipped wit a fully adjustable TXV
Direct-drive, multi-speed motors allows air volume variation for heating/cooling
Direct-drive, multi-speed motors allows air volume variation for heating/cooling
Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
Aluminum tubing coils on all models
Factory-installed pull-type disconnect
Thermoplastic drain pan with bottom primary and secondary drain connections
AHRI Certified and ETL Listed
Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
All Aluminum Coil
Improved Reliability and Quality
Factory TXV Installed for Quicker Install
More Efficient Refrigerant Metering
| Specification | Details |
|---|---|
| Model | AWST30LU1305 |
| Brand | Goodman |
| Product Type | Wall-Mount / Stud-Mount Air Handler |
| Nominal Capacity | 2.5 Ton / 30,000 BTU |
| Refrigerant | R-32 |
| Electric Heat | 5 kW factory installed |
| Blower Motor | Multi-Speed ECM |
| Motor HP | 1/2 HP |
| Maximum Airflow | 1,180 CFM |
| Voltage | 208/230V |
| Phase / Frequency | Single Phase / 60 Hz |
| Minimum Circuit Ampacity | 26.4 / 29.8 A |
| Max Overcurrent Protection | 30 / 30 A |
| TXV | Factory Installed |
| Liquid Line | 3/8″ |
| Suction Line | 3/4″ |
| Drain Connection | 3/4″ FPT |
| Width | 24″ |
| Depth | 21″ |
| Height | 36″ |
| Filter Size | 18″ × 20″ × 1″ |
| Shipping Weight | 109 lb |
| Coil | All-Aluminum |
| R-32 Leak Detection | Factory-installed refrigerant detection sensor |
| Ton | 2.5 Ton |
|---|---|
| Model | AWST30LU1305 |
| Heating Elements | 3, 5, 8 & 10 kW |
| Equipment Type | Ducted Wall-Mounted Air Handler |
| Certifications | AHRI Certified & ETL Listed |
| Refrigerant | R-32 / A2L Compatible |
-
-
-
-
